iFlow mini
Continuous flow, flawless care
A constant pressure irrigation pump
specifically designed for gynecology
Wether you use it in outpatient room or in operating theater, iFlow mini will adapt perfectly and meet all your needs. Its compactness makes it an ally of choice in tight spaces. In operating rooms, enjoy a complete irrigation solution, including the two essential programs in gynecology: hysteroscopy and laparoscopy.
Remarkably easy to use, its key performances remain intact, making iFlow mini a major asset in all solutions.
Technical expertise at the service of vision quality
iFlow mini is based on a simple and effective irrigation technology. The liquid bags are inserted into pressure cuffs. These are automatically inflated by the pump to ensure continuous flow and constant pressure, an essential component to obtain optimal image quality.
Additionally, adjust patient height for a reliable pressure display and thus, obtain uterine dilation in line with your expectations.
The trusted solution for your hysteroscopies
As intrauterine pressure is a key element in hysteroscopy, our pressure sensor makes precise measurements. Easily monitor the pressure exerted on the fluid bags at any time from our interface.
In addition, different types of alarm are present to alert the medical team of a potential overpressure and warn about its level of criticality.

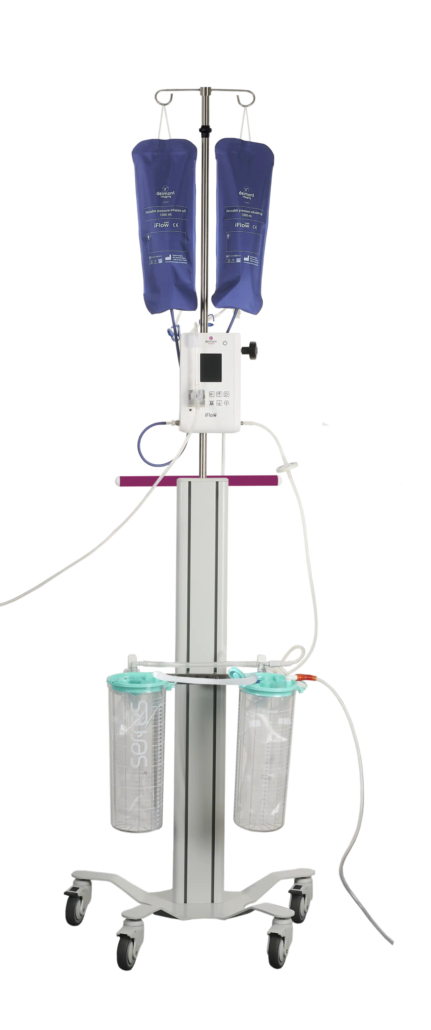

A compact and complete solution
We designed our cart to meet all your needs on a reduced ground footprint, while maintaining high stability.
Stand integrated into cart
Simply and directly hang the cuffs to the stand. Easily adjust its height according to your needs!
The Y-adapter
The switch from one liquid bag to another is done smoothly and easily, ensuring uninterrupted operation.
A container rail included
Place up to four recovery containers simultaneously on the cart and thus optimize the floor space in your room.
Effortless tubing installation
Connect the irrigation tube, with one hand, in seconds!
Vacuum suction available
Adjust the suction power to two levels, with a maximum of 2L/min.
Hysteroscopy program
Adjust your set pressure between 60 and 200 mmHg, the only setting to be made at the beginning of the procedure. Let iFlow mini take care of the rest.
Laparoscopy program
Enjoy a flow rate of up to 1L/min!
iFlow mini accessories, references and features:
iFlow mini
Irrigation and suction pump
Hysteroscopy and Laparoscopy
Hysteroscopy program includes:
– Setting target pressure range: 60 to 200 mmHg
– Pressure measurement range: 60 to 250 mmHg ±15mmHg
Maximum suction power: 50kPa
Power supply: (100-230 V~ ; 50/60 Hz)
Power consumption: 36 VA
Dimensions: 185 x 230 x 130 mm
Weight: 2.0 kg
Leakage isolation : CF type
Complete set including:
– Flow mini. Irrigation pump only
– 2 Pressure cuffs (modele of your choice)
– Y-adapter for double pressure cuff connection
– Self-test tube for iFlow mini pressure sensor
Ref. D400 100 600
Irrigation pump only.
Ref. 110 100 012
Pressure cuffs:
3L cuff
275 x 465 mm
Ref. D110 100 020
3L cuff
Long version
275 x 535 mm
Ref. D110 100 013
1L cuff
160 x 415 mm
Ref. D110 100 014
Tubes
Irrigation tube
STERILE
Single use. 2 spikes.
Delivered by 15
Ref. D110 100 016
Suction tube
STERILE
Single use. 2 connectors.
Delivered by 15
Ref. D110 100 022
Suction vaccum tube
NON STERILE
With filter.
For 30 days of use
Ref. D110 100 017

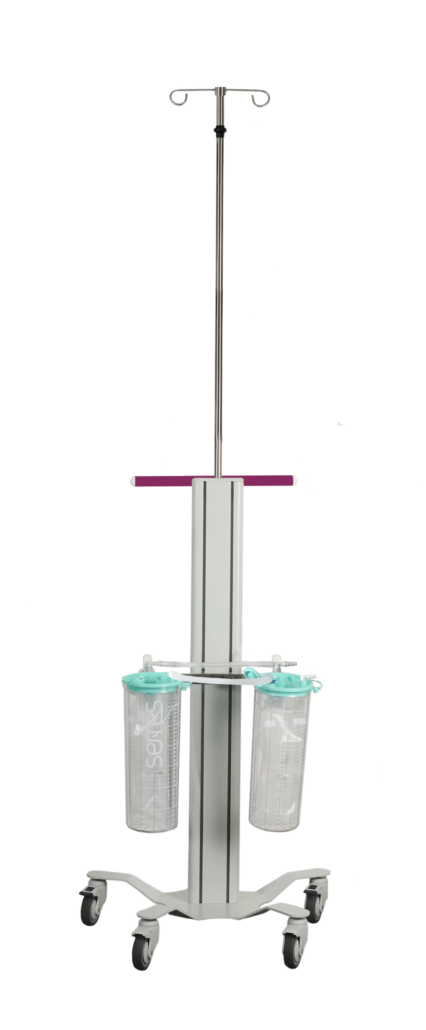

Complete iFlow mini cart,
without shelf, including:
– 2 Serres container holder with rail
– 2 Serres 3L recovery containers – without cover
– 2 Single use Serres suction bag with cover
– T-valve for series connection of Serres containers
– Tandem suction tube for Serres containers, single use
– Tandem vacuum tube for series connection of Serres containers
Ref. D200 100 503
